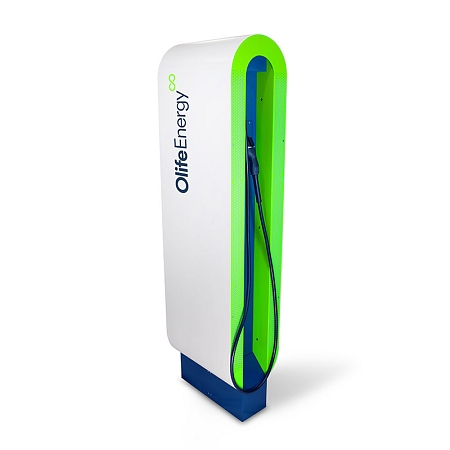

Olife Energy Stand charging station AC 2x22kW - BASE - 2 cables Type 2, 4m

Product code: EL-AC44-BASE
EAN: 8594206030159
Producer: Olife Energy

Olife Energy Stand charging station AC 2x22kW - BASE - 2 cables Type 2, 4m

Olife Energy standing AC charging station of Czech-made. This charging station for electric cars charges with alternating current. This station is intended for charging all types of electric cars on the EU market with alternating current (AC). Two cables with plugs are included (Mennekes)

5 168.47incl. VAT (21%) / pc

excl. VAT 4 271.46 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Olife Energy Stand charging station AC 2x22kW - BASE

Key features:

• Czech product
• Ideal charging station for use in businesses
RFID authorization
Wallbox configuration via mobile application (local Bluetooth)
• Dynamic control of the station's performance using the OlifeEnergy SmartMeter unit
• Function of charging from PVE overflows with an additional solar module

Olife Energy standing AC charging station BASE of Czech-made. This charging station for electric cars charges with alternating current. This station is intended for charging all types of electric cars on the EU market with alternating current (AC). Two cables with plugs are included (Mennekes). The big plus of the station is that it can charge two electric cars at the same time, each with an input of up to 22 kW. Charging starts automatically when the connector is inserted into the vehicle or after identification by an RFID card (RFID chip). The station is in a robust metal design.

The BASE variant is suitable both for private operation or for operation in smaller companies. The station is equipped with a power limitation function against electrical network overload. To shorten the charging time, the station can divide the power input between two charged vehicles according to their needs.

The OlifeEnergy Solar Module can be purchased in addition to this Stand charging station AC, which enables communication with selected inverters for domestic photovoltaic power plants (PVE) without the need to purchase an OlifeEnergy SmartMeter to protect the main circuit breaker. The Solar management function for managing charging from photovoltaic power plants took the 2nd place in the 2023 Fleet of the Year survey.

The total power consumption of the station can be dynamically regulated using the external module OlifeEnergy SmartMeter BASE. SmartMeter is a device that ensures optimal use of the capacity of the electrical connection by measuring the current consumption of the station or its sub-circuit and evaluates the available power input for the OlifeEnergy charging station. The station then regulates the charging current according to the available power input.

Specifications charging station AC - BASE:

• Design: Free-standing heavy duty stand
• E.V. connection: Cable with plug (IEC 62196-2)
• Plugs:  AC22MM – twin Type 2 (Mennekes) / AC22MY – Type 1 (Yazaki) + Type 2 (Mennekes)
• Control: Local – automatic or RFIDRemote
• AC Input: AC3 + N + PE 400V 50 Hz, TN-SAC3 + PEN 400V 50 Hz, TN-C
• Input voltage: 400 VAC (50Hz)
• Input current: 0–63 A
• Surge protection: 2x 4pole breaker 32 A
• Surge protection: 2x residual-current circuit breaker 40 A
• Communication: OlifeEnergy Cloud, OCPP-J, 1.6, 2.0
• Data connection: Ethernet, USB (GSM, Wi-Fi)
• Operating temperature: -30 °C to 50 °C
• Operating humidity: 5 % to 95 %
• Dimensions: 2000 x 560 x 380 mm
• Weight: 110 kg

OlifeEnergy charging station is offered in BASE and SMART variants. The comparison of both variants is in the table below.


Technical parameters can be found in the attached datasheet.





Parameters

Operating temperature -25 ~ +40  °C Weight 110  kg
AC/DC AC AC output connector Type 2
Feed type AC 3 + N + PE 400V 50 Hz , TN-S Control Lokální
Output current 3 x 32  A Output voltage 400  V DC
Communication Bluetooth , RFID , RS485 Degree of protection IP54
Operating humidity od 5 % do 95  % Provedení kabelu Rovný
