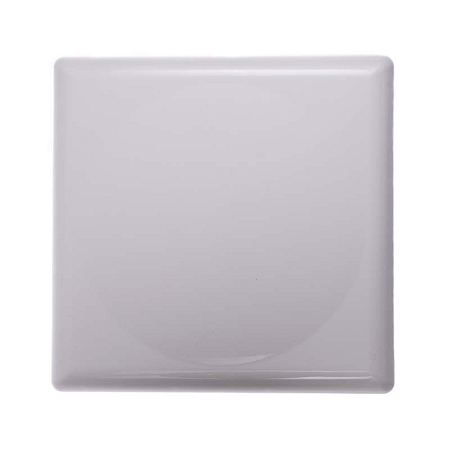

Antenna RFID 12' ThingMagic Monostatic Wideband (RTNC)
The high-performance RFID antenna with a gain of 9.5 dBi operates in the 865-956 MHz band. The characteristic impedance is 50 Ω. The antenna is equipped with an TNC connector. Thanks to the degree of protection IP67, it is suitable for outdoor installation.
Dimensions: 30.5 x 30.5 x 2.5 cm
Specifications connector TNC:
TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.
Technical parameters can be found in the attached datasheet.
