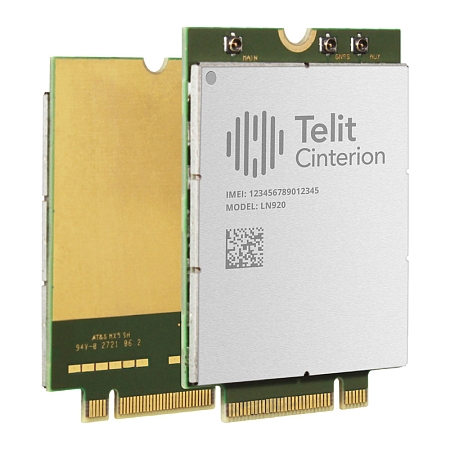

Telit Cinterion LN920A13-WW
This item can only be purchased in multiples of 90 pieces.
The Telit Cinterion LN920A13-WW data card belongs to Telit's family of high-frequency data cards. It is an M.2 module designed for advanced 5G technologies. This module also supports legacy 3G/HSPA+ technology and includes a GNSS (GPS, GLONASS, Beidou, Galileo) receiver for positioning.
The Qualcomm® Snapdragon® X12 processor makes this card suitable for high-performance applications. It offers WCDMA fallback backup technology, high-speed USB 3.0, support for up to 2x CA DL (CAT 13) and two SIMs (Dual-SIM interface).
Telit Cinterion LN920A13-WW provides a wide range of LTE frequency bands and data transfer rates: DL: max 400 Mbps and UL: max 150 Mbps.
The Telit Cinterion LN920A13-WW is ideal for industrial M2M and IoT applications where stable data connectivity and location information are key.
The Telit Cinterion LN920A13-WW data card is intended for use in the EMEA, APAC region.
Key Features:
• GNSS support (GPS, GLONASS, Beidou, Galileo)
• LTE transmission speeds: DL: max 400 Mbps and UL: max 150 Mbps
• 4G bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48 (CBRS), 66, 71
• WCDMA bands: 1, 2, 4, 5, 6, 8, 9, 19
• 2 × 2 MIMO antenna
• USB 3.0 interface support, GPIOs
• Windows 11 and Linux
• Dimensions: 30 × 42 × 2.4 mm
• Operating temperature: -40 °C to +85 °C
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
