Product code: AO-SMB-M
Producer: SECTRON

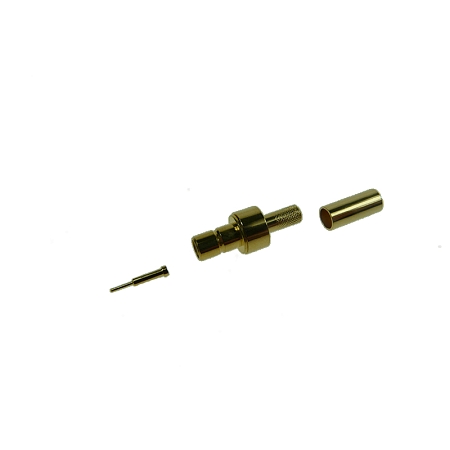

SMB(m) 180° connector, RG174

Product code: AO-SMB-M
Producer: SECTRON

SMB(m) 180° connector, RG174

This connector is designed for RG174 cable with a diameter of 1.80 mm.

1.21incl. VAT (21%) / pc

excl. VAT 1.00 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

SMB (m) straight connector for cable RG174

SMB coaxial connectors are characterized by high reliability and mechanical stability. Snap-on mechanism provides fast and reliable connection. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 4 GHz. They are used, for example, to connect wireless WLAN devices, test devices and GSM/GPS/Wi-Fi antennas.

This connector is designed for RG174 cable with a diameter of 1.80 mm.

Parameters:

• Type: Male (m)
Impedance: 50 Ω
 Mating Cycles: 500 cycles
• Operating temperature: - 65 °C to + 165 °C
• Weight: 2.29 g

Technical parameters can be found in the attached datasheet or contact our sales department.

Parameters

Cabel RG174 Execuion Cable direct

1.21incl. VAT (21%) / pc

excl. VAT 1.00 € / pc
