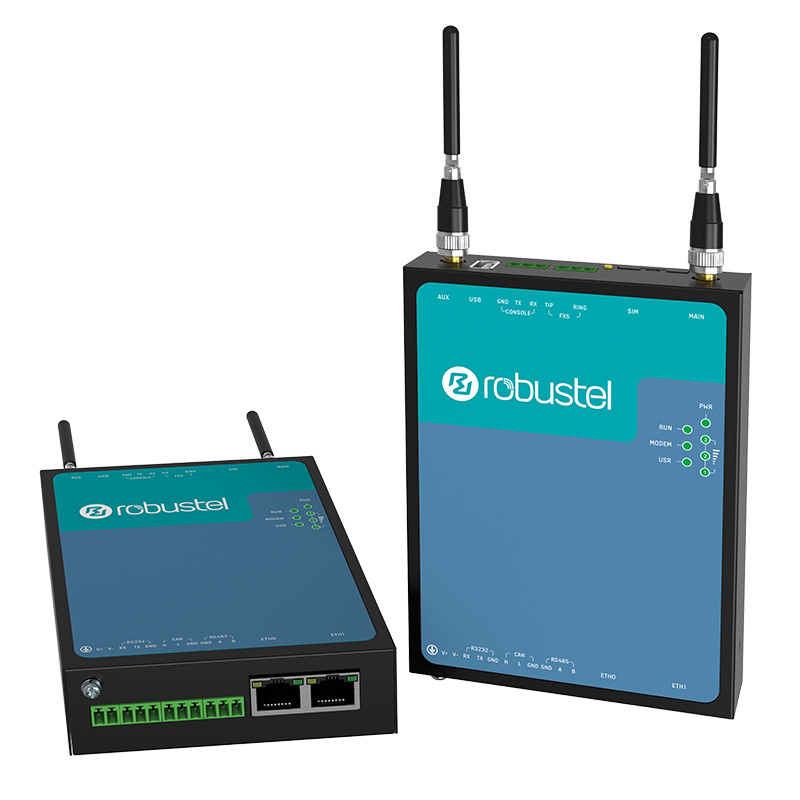

LTE Gateway Robustel R3010-4L
Robustel R3010 is an industrial gateway designed for elevator monitoring, providing fast, reliable, and stable internet connectivity.
Voice Services and Continuous Connectivity
The LTE gateway is equipped with an integrated voice service (FXS) – telephone calls can be transmitted via mobile data or alternative WAN network options (ETH). Always-on voice communication ensures that people inside the elevator always have access to voice assistance, while also enabling continuous remote monitoring.
Operating System RobustOS
R3010 is a powerful gateway running the RobustOS operating system. This proprietary Linux-based system was developed by Robustel specifically for use in its hardware routers. RobustOS includes essential network functions and protocols as standard, providing users with a reliable and user-friendly experience.
Security and Network Features
The gateway supports advanced features similar to those found in cellular routers, including a firewall, '>VPN services, and advanced protocols used in today’s internet. All communication can therefore be securely encrypted, for example through a '>VPN network.
Management, Advanced Monitoring and Rugged Hardware
Robustel R3010 reliably manages networks and automatically routes voice connections as required. It supports scheduled reboots for messaging and telephony services and provides event notifications via email or SMS. The Watchdog function enables real-time data monitoring.
Its rugged design allows DIN-rail mounting, supports a wide DC input range, and withstands extreme operating temperatures from -40 to 75 °C.
Interfaces and Connectivity
The LTE Gateway R3010-4L features RS-232, RS-485, USB 2.0, two SMA(f) antenna connectors, and two 10/100 Mbps Ethernet ports (ETH0 + ETH1).
Key features of the LTE Gateway Robustel R3010-4L:
- 2G/3G/4G mobile network support
- Interface support RS232/CAN/RS485/Console/USB/Ethernet/FXS (voice service)
- Modbus RTU/ASCII to TCP converter support
- Voice communication
- IPSec, OpenVPN, PPTP, L2TP, GRE, DMVPN support
- Modbus RTU/ASCII to TCP conversion support
- Watchdog function
- Support for event notifications by email and messag
- Management via SMS/Web/CLI/SNMP/RobustLink Cloud
- Input voltage 9 to 26 VDC
- Robust industrial design (wall or DIN rail mounting)
Package contains:
- 4× connector 3pin
- 1× connector 2pin
Antennas, power supply and Ethernet cable are not included.
More information can be found in the attached datasheet.
