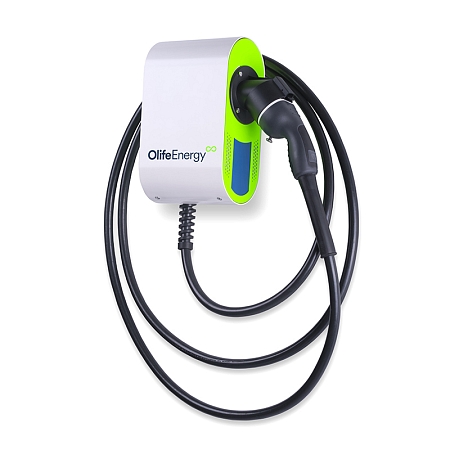

Olife Energy Wallbox AC 22kW - SMART - cable Type 2, length 5 m
• Czech product
• Ideal charging station for use in businesses
• RFID authorization
• OlifeEnergy AC Cloud services (remote monitoring, management, control and charging of charging stations)
• Wallbox configuration via mobile application (local Bluetooth)
• Dynamic control of the station's performance using the OlifeEnergy SmartMeter unit
OlifeEnergy WallBox SMART is a robust, durable Czech-made charging station. Wallbox is designed for charging all types of electric cars on the EU market with alternating current (AC). It charges up to 22 kW. It can be mounted on a wall (wallbox) or on a profile that is anchored to the ground (mount field). Thanks to the degree of protection IP54, it is durable and suitable for outdoor use and installation in indoor spaces such as garages.
This WallBox is equipped with a socket and a cable Type 2 (Mennekes), which is 5 m long. At the customer's request, the station can be delivered with a longer cable for an individual surcharge.
Compared to the Base model, the SMART Wallbox has advanced features such as support for the OlifeEnergy Cloud service and the OCPP protocol. It also provides remote communication (LAN, GSM), station diagnostics, power control of multiple stations, charging monitoring and control using RFID chips and the OlifeEnergy mobile application. The power of the station can be controlled in the range of 0 - 22 kW by a local unit. The station is equipped with protection against electric current overload.
The total power consumption of the station can be dynamically regulated using the external module OlifeEnergy SmartMeter. SmartMeter is a device that ensures optimal use of the capacity of the electrical connection by measuring the current consumption of the Wallbox or its sub-circuit and evaluating the available power consumption for the OlifeEnergy charging station. The station then regulates the charging current according to the available power input.
The input power cable must be preceded by a type B circuit breaker, with a max. Tripping value of 32 A and a Residual Current protective Device type A, with a max. rated current 40 A.
Servises OlifeEnergy Cloud
OlifeEnergy Cloud is a platform for remote monitoring, management and clients charging. User is provided withthe access to information about his charging station and it’s setting through web interface. The platform offersmultiple services which can be combined. OlifeEnergy Cloud is supported only by SMART version of Olifechargers.
Basic service for remote communication with the charging station. The user is informed about status and energy
consumption including history data.Thanks to remote access the OlifeEnergy center can easily diagnose possible
problem, in most cases it is even possible to adjust the issue remotely. SIM card for GSM module is includedin the package.
This service allows the OlifeEnergy charging station owner to define the fee for station operation. Cost of transaction
fee is added to each charging session price paid by charging station user.
This service allows management of users allowed to use the OlifeEnergy charging station. The charger can appear as a public
charging station in OlifeEnergy Net map of chargers, or it can be visible only to a certain group of users. A List of all
individual charging sessions (user, time and consumed energy) data is available for the charging station owner with this service.
A Load-Balancing service for advanced control of the charging station. If there is not enough power to charge the E.V., or
E.V. fleet, consumption of the charging station(s) can be controlled based on specific maximum withdraw limit (weak grid) or dynamically (based on maximum consumption of the building in a certain time frame). Overall the Power control service brings savings for reducing building main circuit breaker tariff or maximum reserved power payments, it also prevents possible penalties for overstepping maximum quarter-hour power withdraw limits.
Specification WallBox SMART:
• Output connector: Type 2
• Output power : 0-22 kW
• Control: local - automatic or RFID / remote – OlifeEnergy Cloud, OCPP
• Residual protection: rezidual DC current detection (IEC 62955)
• Max. input current: 0-32 A
• Communication: OlifeEnergy Cloud, OCPP 1.6/2.0
• Data connection: Ethernet, USB (GSM, Wi-Fi)
• Input voltage: 3x400 V
• IP rating: IP54
• Operating temperature: od -25 °C do 40 °C
• Operating humidity: od 5 % do 95 %
• Weight: 9,5 kg
• Cable length: 5 m
• Dimensions: 266 × 320 × 120 mm
• Ordering code: T2K
OlifeEnergy WallBox is offered in BASE and SMART variants. The comparison of both variants is in the table below.
Technical parameters can be found in the attached datasheet.
