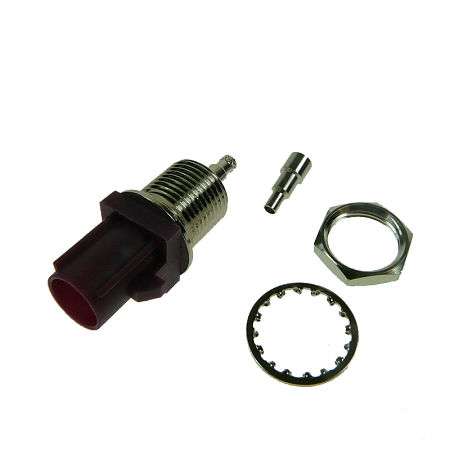

Panel connector FAKRA (m), type D designed for cables with a diameter of 1.13-1.37
FAKRA connectors in plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. FAKRA connectors are most often used in the automotive industry, for example for connecting antennas, radios, navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting FAKRA connectors is easy, we guarantee up to 25 cycles.
FAKRA panel connector, type D is designed for coaxial cables with a diameter of 1.13-1.37 mm. Method of mounting - soldering to the panel.
Material and finish:
• Cover: plastic
• Body: phosphor bronze
• Contact plating: gold
Parameters:
• Type: Male (m)
• Impedance: 50 Ω
• Maximum frequency: 0-6 GHz
• Mating cycles: 25
• Operating temperature: -40 °C to 105 °C
Technical parameters can be found in the attached datasheet or contact our sales department.
