Product code: AW-A24G-SRPK
Producer: SECTRON

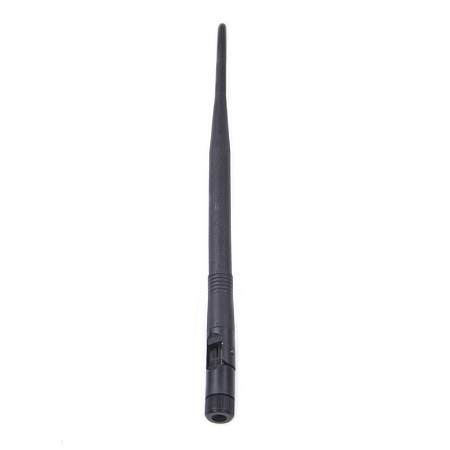

Antenna WiFi Connector Mount SRPK, 2.4 GHz, 5 dBi, RP-SMA(pin f)

Sale
Product code: AW-A24G-SRPK
Producer: SECTRON

Antenna WiFi Connector Mount SRPK, 2.4 GHz, 5 dBi, RP-SMA(pin f)

Omnidirectional WiFi antenna with the gain of 5 dBi working in band 2.4 GHz. It is suitable for homes or offices for connection to cellular routers.

6.63incl. VAT (21%) / pc

excl. VAT 5.48 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional WiFi antenna

Omnidirectional WiFi antenna with the gain of 5 dBi working in band 2.4 GHz. It is suitable for homes or offices for connection to cellular routers. The WiFi antenna is terminated with an SMA-RP (f pin) connector and is easy to install.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector RP-SMA(f)
Maximum input power 10  W Polarization Linear
Execuion External Operating temperature -20 ~ +60  °C
Dimensions 208.6 x 37  mm Directivity Omnidirectional
Technology WIFI Weight 17.91  g
Gain 5  dBi VSWR <2.0:1
Radiation angle H 360 V 30 Type of attachment Connector mount

6.63incl. VAT (21%) / pc

excl. VAT 5.48 € / pc
