Product code: AP-AGNSS-A601S
Producer: SECTRON

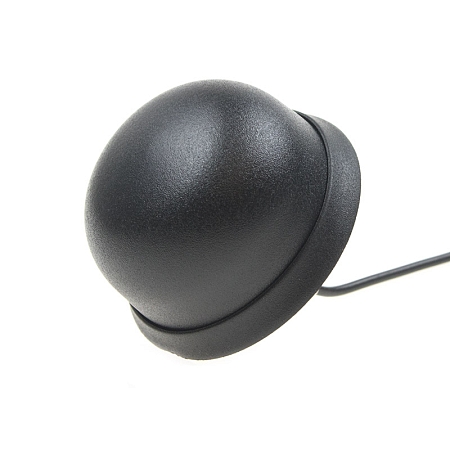

Antenna GPS/GLONASS Screw Mount A601, SMA(m), RG174/3m

Recommended
Product code: AP-AGNSS-A601S
Producer: SECTRON

Antenna GPS/GLONASS Screw Mount A601, SMA(m), RG174/3m

Omnidirectional internal antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz.

26.84incl. VAT (21%) / pc

excl. VAT 22.18 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional internal GPS/GLONASS antenna

Omnidirectional internal antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz. The antenna reaches up to 28 dBi gain when combined with an amplifier. It is suitable for use in cars and other means of transport. Here it is used for navigation and tracking systems, electronic books and other devices. It is supplied with 3 m cable with SMA (m) connector.

An antenna with an amplifier will improve signal reception and provide users with a more reliable and stable connection.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) Maximum input power 10  W
Power voltage 2.2 V - 5 V DC Polarization R.H.C.P.
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 68 x 34.8  mm Directivity Omnidirectional
Bandwidth 5  MHz Technology GPS , GLONASS
Weight 200.9  g Gain 28  dBi
VSWR <1.5:1 Radiation angle H 360 V 30
Type of attachment Screw Mount

26.84incl. VAT (21%) / pc

excl. VAT 22.18 € / pc
