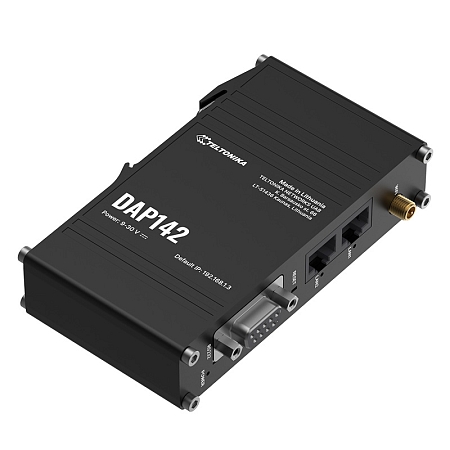

Teltonika WiFi Access Point DAP142
The Teltonika DAP142 WiFi Access Point is an industrial-grade access point designed by Teltonika Networks to reliably extend Wi-Fi coverage and enhance performance in demanding environments.
Access Point Technology
The access point supports Wi-Fi 4 technology with Wi-Fi mesh and fast roaming capabilities, ensuring seamless and stable connections. The Wi-Fi mesh network consists of multiple interconnected devices that collectively create a unified wireless network across the entire coverage area.
It is powered using passive PoE, which simplifies installation and reduces the need for separate power cables. Passive PoE is a straightforward method of powering devices that uses an Ethernet cable to transmit both data and electrical power. The plug-and-play feature offers easy connection and configuration.
Performance and Use
This access point is equipped with an RS232 port, two RJ45 ports (2 x 10/100), and a 3-pin power connector. The robust aluminum housing and integrated DIN rail mount ensure easy installation and long durability even in harsh conditions. With a capacity for up to 50 simultaneous connections, it is an ideal choice for environments requiring continuous connectivity, such as manufacturing facilities, warehouses, or logistics centers where multiple devices need to be connected simultaneously.
Remote Management RMS and Compatibility
The Teltonika DAP142 access point is compatible with the Teltonika Remote Management System (RMS), which allows for remote management and monitoring of all Teltonika network devices. The system enables configuration changes and gathering information about the status of individual devices, even if they do not have public IP addresses.
Try RMS for free by clicking on this link and registering for a complimentary 30-day demo account at: https://rms.teltonika.lt/
We recommend using the detailed manual and configuration materials; official resources can be found here.
Key Features:
• 1 x RP-SMA antenna for Wi-Fi
• WiFi IEEE 802.11b/g/n (Wi-Fi 4)
• 2 x RJ45 ports, 10/100 Mbps
• 1 x RS232 port
• Passive PoE power supply: 9 - 30V
• RAM: 128 MB
• CPU: 580 MHz
• Operating System: RutOS
• Operating Temperature: -40 °C to 75 °C
• Protection Class: IP30
• Dimensions: 113.10 x 25 x 68.6 mm
• Weight: 149.2 g
Package Includes:
• Teltonika DAP142 Access Point
• 1 × WiFi antenna (magnetic, RP-SMA male)
• 3-pin power connector
• QSG (Quick Start Guide)
Technical parameters can be found in the attached datasheet.
