Product code: AM-88-US20
Producer: SECTRON

RF cable adaptor U.FL(f) to SMA(f), LP-088, 20 cm, Heat shrink tube

Product code: AM-88-US20
Producer: SECTRON

RF cable adaptor U.FL(f) to SMA(f), LP-088, 20 cm, Heat shrink tube

U.FL(f) adaptor (Pigtail) - SMA (f) with LP-088 series cable, 20 cm cable length and 1.37 mm diameter.

5.93incl. VAT (21%) / pc

excl. VAT 4.90 € / pc

Price from 10 pieces 4.45 €

Price from 100 pieces 4.01 €

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

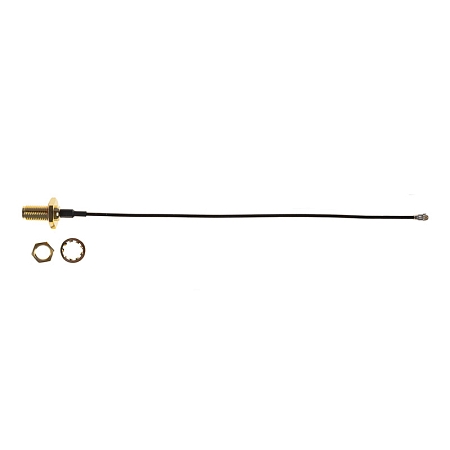

RF cable adaptor (pigtail) U.FL (f) to SMA (f)

Features:

U.FL (f) adaptor (pigtail) - SMA (f) with LP-088 series cable, 20 cm cable length and 1.37 mm diameter.
The adaptor is designed for the frequency range of the U.FL 0-6 GHz / SMA 0-18 GHz connector and achieves very low VSWR values, less than 1.25:1 over the entire frequency range. Connecting and detaching the U.FL and SMA connectors is easy, guarantee of 30 cycles due to the small size and strength of the U.FL connector. The SMA connector has a guarantee up to 500 cycles. The SMA connector includes an O-ring that enhances water and dust sealing properties.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:

• Cable type LP-088: diameter 1.37 mm
• Cable length: 20 cm
Connector A: SMA(f) panel straight, BH for RG178 cable, O-ring, H11
Connector B: U.FL-LP-088HF
• Weight: 3.92 g
• Certification: RoHS

• Frequency range: Up to 3 GHz
Impedance: 50 ± 2 Ohm
• Insulation resistance: 500 M Ohm
• MAX. VSWR: <1.25: 0 (0-3 GHz)
• Maximum insertion loss: -0.8 dB / 3 GHz (10 cm)
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 °C to +90 °C

Connector A - Connector SMA

Use:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The SMA connector includes an O-ring that enhances water and dust sealing properties. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Benefits:

• Low insertion loss
• Low VSWR
• High frequency range
• Fully gold

Properties:

 • Frequency range: Up to 18 GHz
 • Impedance: 50 Ohm
 • MAX. VSWR: <1.5:1
 • Guaranteed number of SMA connections : 500 (only applies to berilium center contact)
 • Maximum operating voltage: 500 V AC / 1 min
 • Operating temperature: -55 °C do +155 °C
 • Certification: RoHS

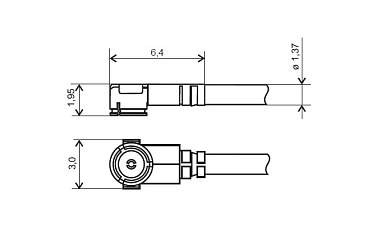

Connector B - Connector U.FL

Use:

U.FL connectors are used in applications where there is very little space for connecting / interconnecting RF components.
Gold-plated center contact U.FL connector improves its properties.

Benefits:

• Low insertion loss
• Low VSWR
• Miniature dimensions
• Gold-plated center contact

Parameters:

 • Frequency range: Up to 6 GHz
 • Impedance: 50 ± 2 Ohm
 • 500 Ohm insulation resistance
 • MAX. VSWR <1.4: 1 (0-6GHz)
 • Maximum operating voltage: 200 V AC / 1 min
 • Guaranteed number of connections: 30 cycles
 • Operating temperature: -40 °C do +90 °C
 • Weight: 72 mg

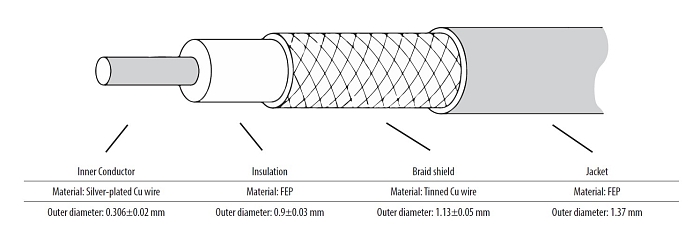

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RF 1.37
Connector SMA(f) , U.FL(f) R/A Operating temperature -40 ~ +90  °C
Weight 4.64  g VSWR <1.25:1
Certification RoHS
