Product code: AP-AGPS-TB360T
Producer: Protempis
Product code: 101898-00

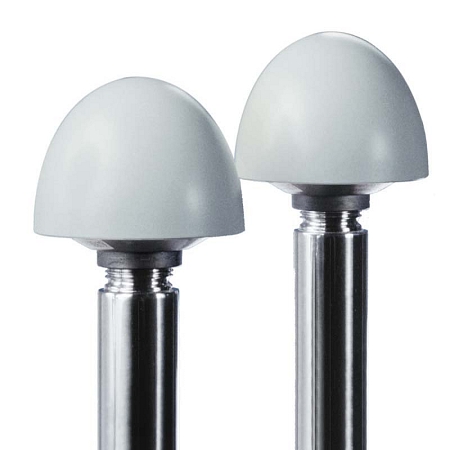

Protempis Bullet Antenna 360T, TNC (101898-00)

Product code: AP-AGPS-TB360T
Producer: Protempis
Product code: 101898-00

Protempis Bullet Antenna 360T, TNC (101898-00)

Protempis Bullet 360T - durable and active GNSS antenna (GPS/Galileo/Beidou/GLONASS) with a TNC connector.

142.05incl. VAT (21%) / pc

excl. VAT 117.40 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Protempis Bullet 360T, GNSS  Active Antenna, connector TNC

Protempis Bullet 360T - durable and powerful GNSS antenna (GPS/Galileo/Beidou/GLONASS) with a TNC connector, operates in the band 1575.42 - 1602 MHz and in combination with an integrated amplifier reaches a total gain of 30 dBi. Thanks to the degree of protection IP67, this active antenna is waterproof, resistant to corrosion, excessive vibrations, weather and shocks, and has a wide operating temperature range (−40 ° C to +90 ° C). It is ideal for use in city environments.

The TNC antenna connector is located inside the threaded socket, which allows the antenna cable to be routed inside the mounting rod and protects the cable connection. The Protempis Bullet 360T antenna is RoHS II compliant.

Specifications connector TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Note: The mounting rod in the photo is not part of the package.

Parameters

Impedance 50  Ohm Connector TNC(f)
Power voltage +3.3 V DC Polarization R.H.C.P.
Execuion External Operating temperature -40 ~ +90  °C
Dimensions 77.5 x 66.2  mm Directivity Omnidirectional
Technology GPS Weight 200  g
Gain 26  dBi VSWR <2.0:1
Type of attachment Screw Mount

142.05incl. VAT (21%) / pc

excl. VAT 117.40 € / pc
