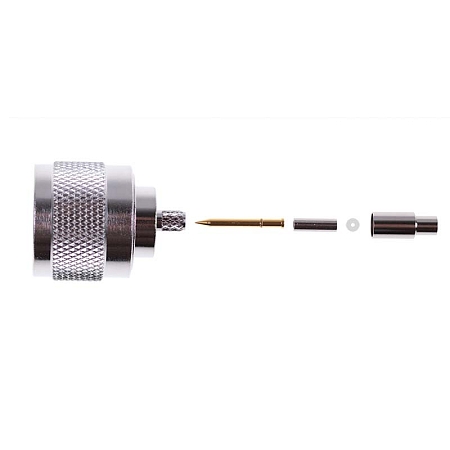

Coaxial connector N (m) for cable RG174
Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.
Coaxial connector N (m) is designed for cable RG174.
Parameters:
• Type: Male (m)
• Impedance: 50 Ω
• Maximum frequency: 0-11 GHz
• Operating temperature: - 65 °C to + 165 °C
Specifications of RG174 cable:
The cable RG174 is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc. There are also specially modified types of RG174 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.'
Technical parameters can be found in the attached datasheet or contact our sales department.
