Product code: AO-1SKF-5923
Producer: SECTRON

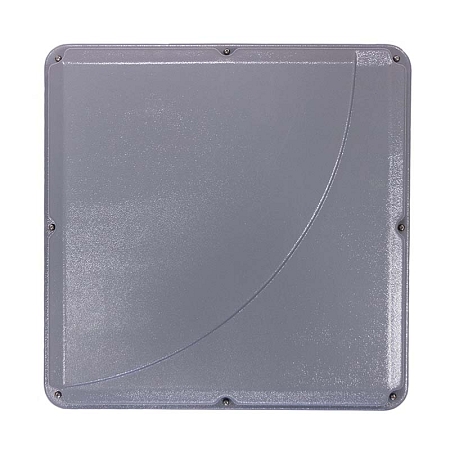

Antenna WiFi PANEL 5923, 5.1-5.9 GHz, 23 dBi, N(f)

Sale
Product code: AO-1SKF-5923
Producer: SECTRON

Antenna WiFi PANEL 5923, 5.1-5.9 GHz, 23 dBi, N(f)

Directional outdoor antenna for WLAN technologies. The antenna operates in bands 5100/5300/5400/5800/5900 MHz.

182.98incl. VAT (21%) / pc

excl. VAT 151.22 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Directional Wifi antenna

The directional outdoor antenna with a gain of 23 dBi is designed for signal reception in WiFi technology. The antenna operates in bands 5100/5300/5400/5800/5900 MHz and is equipped with an N (f) connector. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Connector specifications N:

A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -40 °C to +80 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector N(f)
Polarization Linear Execuion External
Operating temperature -40 ~ +80  °C Dimensions 370 x 370 x 35  mm
Directivity Directional Technology WIFI
Weight 1350  g Gain 23  dBi
VSWR <1.5:1 Radiation angle H 360 V 30
Type of attachment Screw Mount

182.98incl. VAT (21%) / pc

excl. VAT 151.22 € / pc
