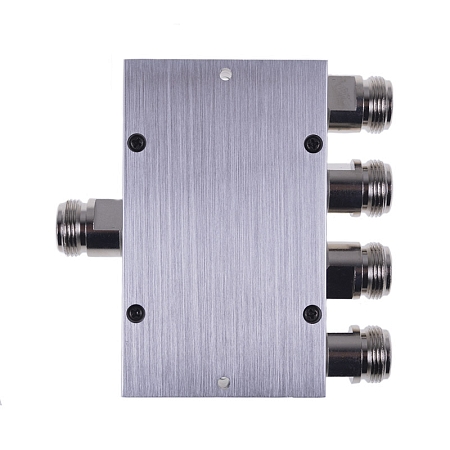

Antenna Splitter Coupler 800-2500MHz 4/1

Product code: XGSM-ROZBO4
Producer: SECTRON

Antenna Splitter Coupler 800-2500MHz 4/1

The broadband splitter with four outputs is equipped with four N (f) type connectors.

65.11incl. VAT (21%) / pc

excl. VAT 53.81 € / pc

Price from 10 pieces 43.05 €

Price from 100 pieces 38.71 €

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Splitter Coupler (800-2500 MHz) with 4 outputs

The broadband splitter with four outputs is equipped with four N (f) type connectors. Suitable for branching from one coaxial branch into four coaxial branches and thus allowing the connection of multiple devices.

Features:

• Frequency: 800 - 2500 MHz
VSWR: 1.35 : 1 (max)
Impedance: 50 Ohm
• Divider Factor: 1 : 4
• Divider Loss: 6 dB
• Temperature range: -40 °C až +90°C
• Dimensions: 29 × 11.4 × 11.6 mm
• Low Insertion Loss

Specifications connector N:

A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

Frequency range 800-2500  MHz
