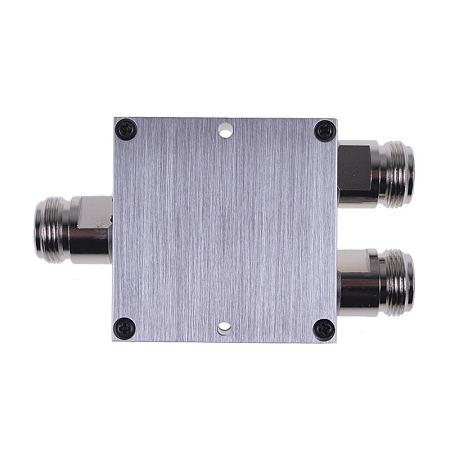

Splitter Coupler (800-2500 MHz) with 2 outputs
The broadband splitter with two outputs is equipped with two N (f) type connectors. Suitable for branching from one coaxial branch into two coaxial branches and thus allowing the connection of multiple devices.
Features:
• Frequency: 800 - 2500 MHz
• VSWR: 1.35 : 1 (max)
• Impedance: 50 Ohm
• Divider Factor: 1 : 2
• Divider Loss: 3 dB
• Temperature range: -40 °C až +90°C
• Dimensions: 20 × 58 × 98 mm
• Low Insertion Loss
Specifications connector N:
A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.
Technical parameters can be found in the attached datasheet.
