Product code: AO-AGSM-MI9S-FLEXI
Producer: SECTRON

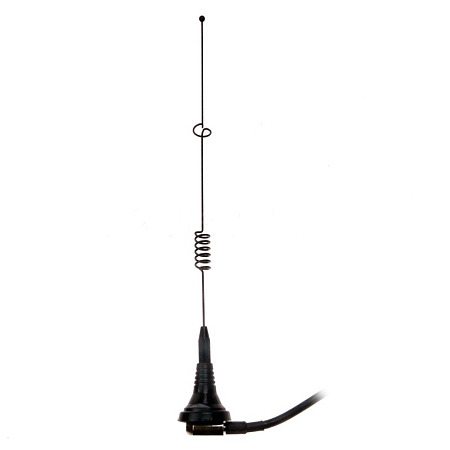

Antenna GSM Screw Mount MI9, 6 dBi, SMA(m), RG58/5m, Flexible

Product code: AO-AGSM-MI9S-FLEXI
Producer: SECTRON

Antenna GSM Screw Mount MI9, 6 dBi, SMA(m), RG58/5m, Flexible

Omnidirectional antenna for GSM technologies. The antenna operates in bands 900/1800 MHz.

19.55incl. VAT (21%) / pc

excl. VAT 16.16 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional GSM antenna

Omnidirectional antenna with a gain of 6 dBi for GSM technologies and operates in bands 900/1800 MHz. It is suited for modems/routers. The antenna system is supplied with four 5 m RG58 cables with SMA(m) connectors.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others.

Technical parameters can be found in the attached datasheet.


Parameters

Impedance 50  Ohm Cabel RG58/U
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +80  °C Dimensions 33 x 334  mm
Directivity Omnidirectional Technology GSM
Weight 232.25  g Gain 6  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Screw Mount
