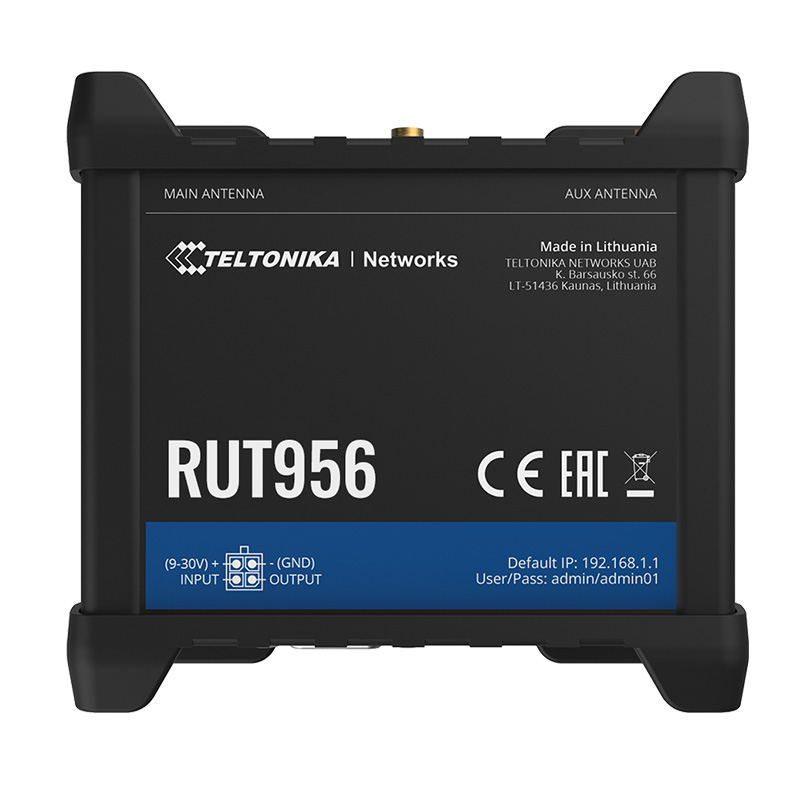

Teltonika RUT956 LTE Router - MeiG
This router Teltonika (product code GM-RUT956-M) is equipped with a MeiG cellular module.
Teltonika RUT956 LTE Router - MeiG
This router Teltonika (product code GM-RUT956-M) is equipped with a MeiG cellular module.
Introduction to the Teltonika RUT956 Industrial LTE Router
The Teltonika RUT956 router is a highly reliable and powerful device for professional applications. This LTE router with Wi-Fi, Ethernet, and GNSS support is designed for Wi-Fi/4G LTE CAT4/3G/2G/GNSS technologies.
Rich Connectivity, Antenna Connectors, and I/O Interface
Serial communication interfaces including 4x RJ-45, RS-485 (6-pin), RS-232 (DB9 socket), and a USB 2.0 port allow for the connection of multiple devices, including legacy hardware. The LTE router is also equipped with the following antenna connectors: 2x SMA connector (LTE), 1x SMA connector (GNSS), and 2x RP-SMA connector (Wi-Fi). Digital and analog I/O inputs and outputs facilitate device control, automation, and event or fault notifications.
High Reliability with Dual SIM and WAN Failover
Two SIM card slots allow for the use of two different mobile service providers, enabling the creation of redundant 4G/LTE or 2G/3G connections with Failover and Fallback features. Automatic switching to a backup data connection upon WAN failure ensures solution continuity even in the event of losing the primary connection.
Wide Support for Industrial and Network Protocols
The Teltonika RUT956 router features advanced industrial software functions, including Modbus, SNMP, TR-069, NTRIP, MQTT, and numerous VPN networks.
Robust Design Ideal for IoT and Remote Monitoring
Housed in a robust aluminum casing, the RUT956 LTE Ethernet router is ideal for IoT devices and applications requiring remote monitoring, such as vending machines, sensors in the energy sector, and other networked equipment.
Tip for outdoor installation without signal loss
For using the router in demanding outdoor conditions (e.g., for camera, solar, and security systems), we recommend purchasing the integrated QuWireless QuSpot AX50S omnidirectional antenna.
This kit serves as a robust waterproof IP68 enclosure into which you simply mount the Teltonika router.
Advanced RutOS Operating System and RMS Management
The RUT956 router is equipped with RutOS. This is an operating system based on Linux OpenWRT, which is a major advantage when choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS remote management system.
Key Features of router RUT956:
• LTE Cat 4 support up to 150 Mbps
• Automatic switching to an available backup connection
• Dual SIM
• WAN failover
• Communication interface RS232 (DB9), RS485 (6-pin industrial socket)
• USB 2.0 interface
• 4x Ethernet ports (3x 10/100 Ethernet LAN, 1x 10/100 Ethernet WAN)
• Support Passive PoE
• Teltonika Remote Management System compatible
Package contains:
• Router Teltonika RUT956
• 9 W PSU
• 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• GNSS antenna (adhesive, SMA male, 3 m cable)
• RS485 connector block
• I/O connector block
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
For this router Teltonika RUT956 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
