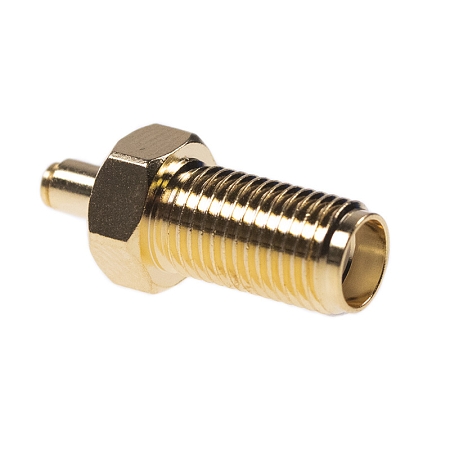

SMA (f) panel connector, cable RG178, nut H8
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
This particular connector is designed for a coaxial cable RG178, nut size H8.
Material and finish:
• Body: Brass / Gold
• Center Contact: Phosphor Bronze / Gold
• Insulator: Teflon / -
• Push Insulator: Teflon / -
• Washer: Brass / Gold
• Nut: Brass / Gold
• Push Ferrule: Brass / Gold
Parameters:
• Type: Female (f)
• Impedance: 50 Ω
• VSWR: <1.25: 1
• Maximum Frequency: 6 GHz
• Insulation resistance: 1 000 MΩ
• Mating Cycles: 500 cycles
• Operating temperature: - 65 °C to + 165 °C
• Weight: 4.5 g
Technical parameters can be found in the attached datasheet or contact our sales department..
