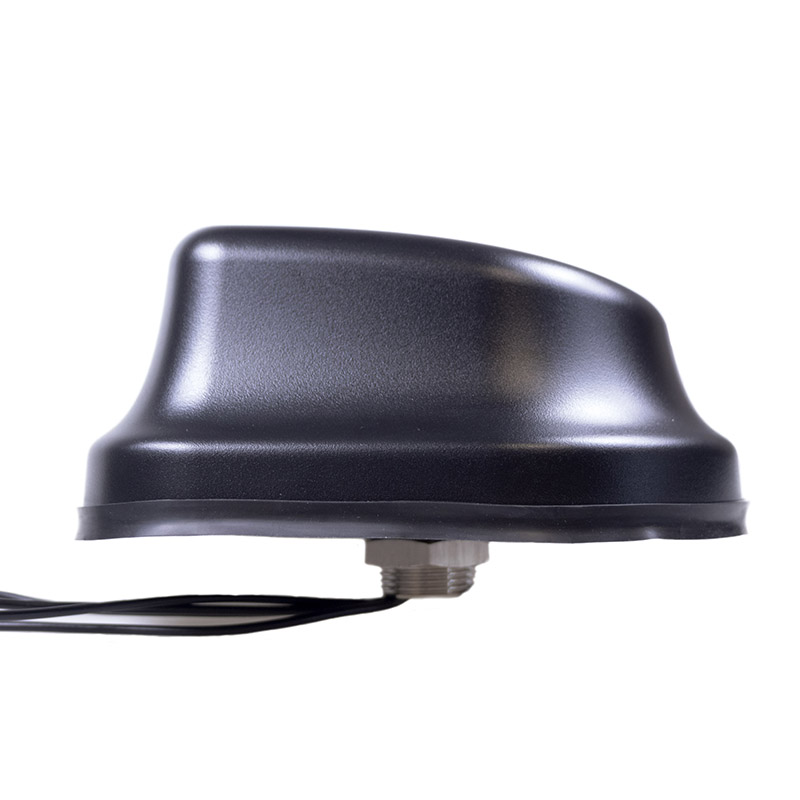

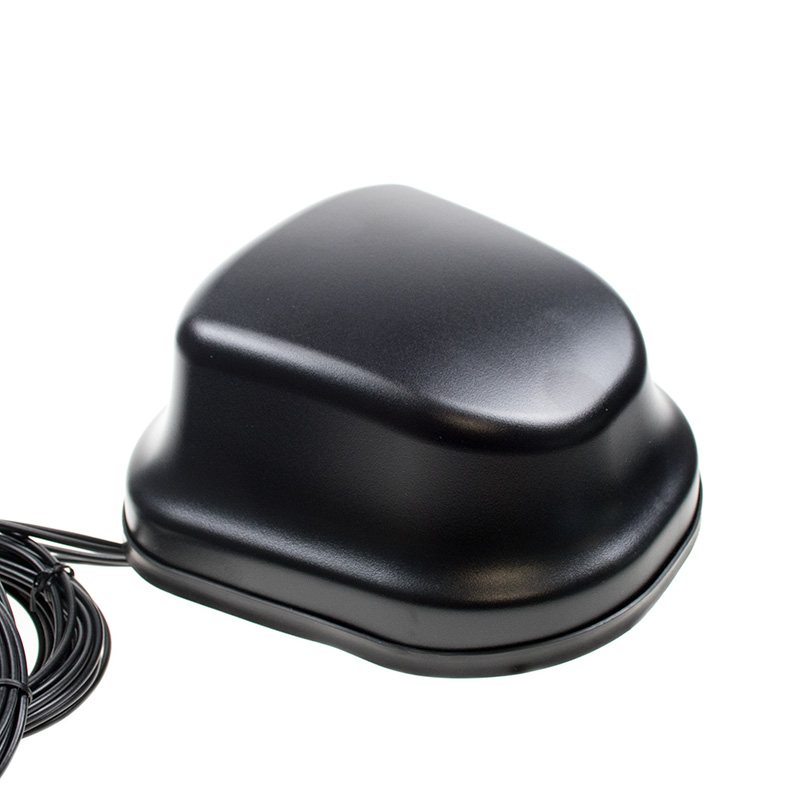

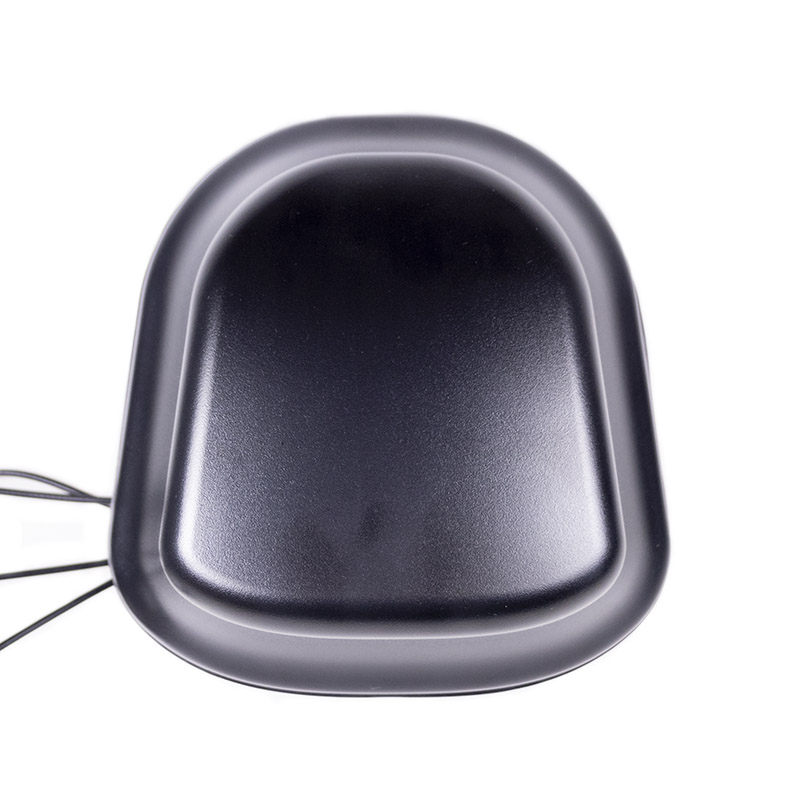

5G MIMO mounting antenna G605NR4
Combined Mounting MIMO Antenna designed for signal reception in GSM, UMTS, LTE, and 5G technologies. The antenna operates in the frequency bands 698–3800 MHz and 4400–5000 MHz, making it fully compatible with next-generation 5G frequencies. By utilizing MIMO technology and proper antenna placement, the system achieves higher transmission speeds compared to standard LTE.
MIMO technology (Multiple-Input Multiple-Output) is a method used in wireless communication that enables simultaneous transmission and reception of multiple data streams through several antennas on both the transmitter and receiver sides. This technology enhances network capacity, transmission speed, and communication reliability.
With an IP67 rating, the antenna is suitable for outdoor use. This 5G antenna is ideal for various wireless applications that require reliable signal reception and environmental resistance. It can be used in M2M (Machine-to-Machine) communication as well as in IoT devices and IoT systems.

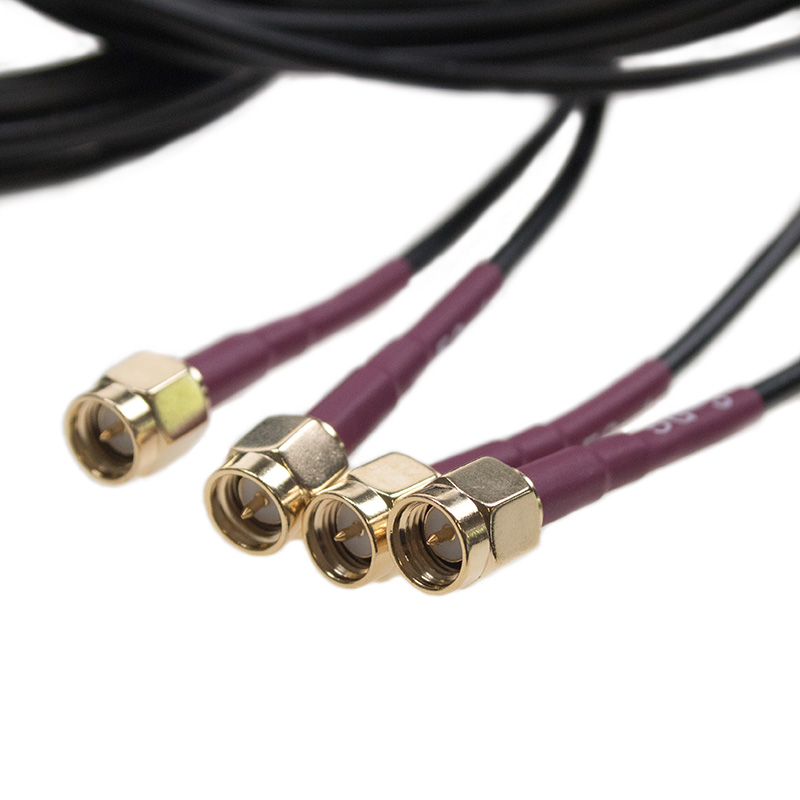

The antenna system is supplied with four LMR100 cables, each 3 meters long, terminated with SMA(m) connectors, ensuring easy installation and integration into various systems.
Connector specifications SMA
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi /2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology.
Cable specifications LMR100
The LMR100 coaxial cable is compatible with connectors applicable to 2.8 mm cable outer diameter, such as SMA Male, TNC Male, N Male, N Female. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range of -40 °C to + 85 °C. The LMR100 cable is used for connecting antennas as well as for VHF and UHF applications. It is suitable for indoor and outdoor applications. There are also specially adapted types of LMR100 cables for outdoor use, which are UV resistant, and for use in extreme conditions. It is made from different materials, different qualities.
Technical parameters can be found in the attached datasheet.
