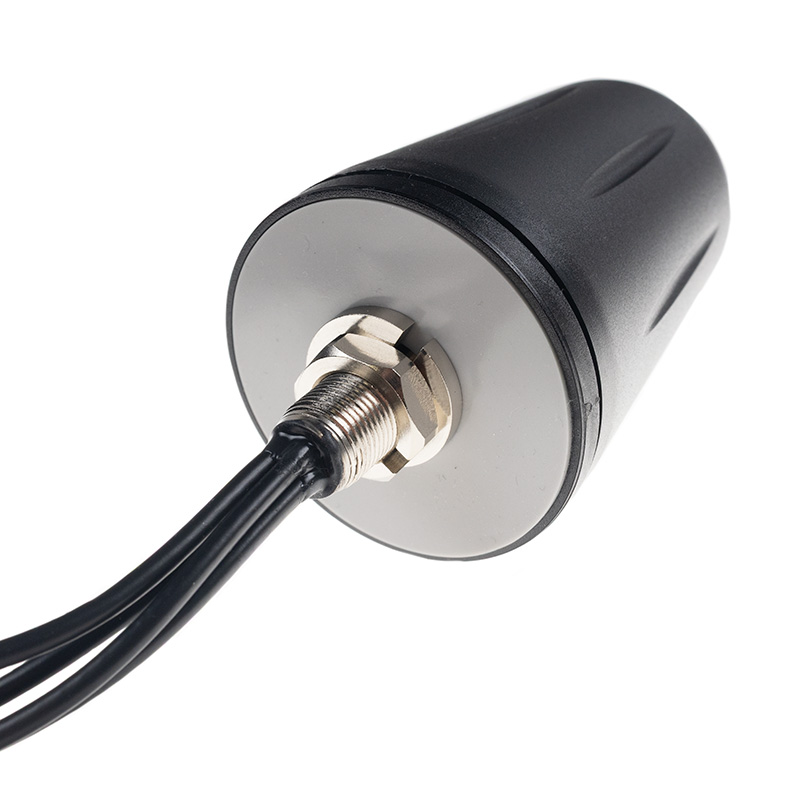

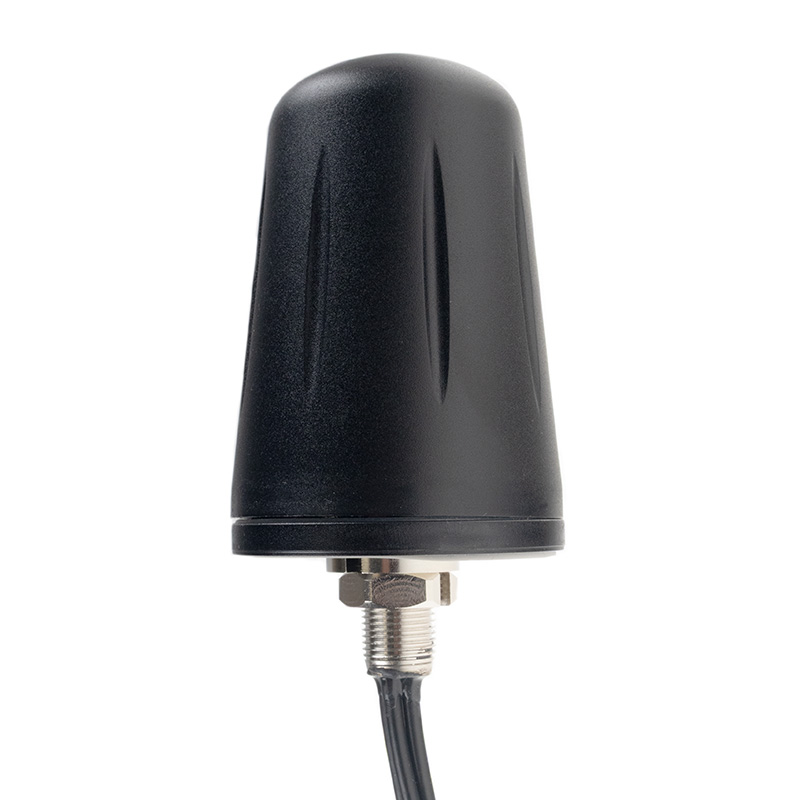

5G MIMO antenna mounting A1354
Combined MIMO Mounting Antenna designed for signal reception in 5G technologies. It operates in the 600–6000 MHz bands. When using MIMO technology, the resulting system achieves higher transmission speeds, increased signal strength, and thus faster internet.
MIMO technology (Multiple-Input Multiple-Output) allows for simultaneous signal transmission and reception using multiple antennas. It is used in mobile networks to improve the performance and capacity of 5G and LTE networks. The antenna can be applied in M2M as well as IoT systems and devices. It is ideal for industrial applications, such as wireless modems and routers.

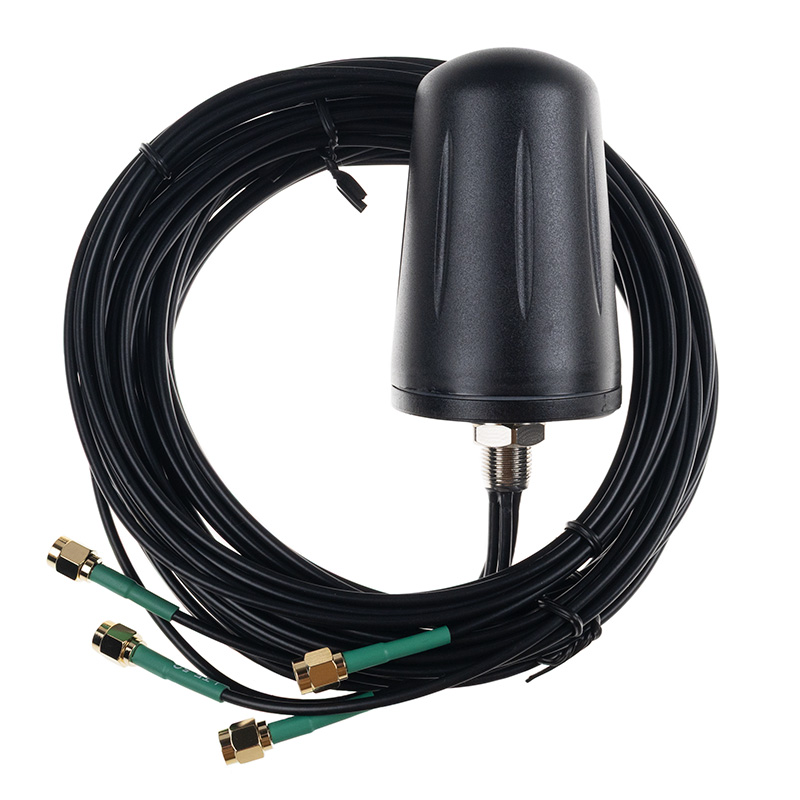

The 5G antenna is equipped with four SMA (male) connectors and RG174/U cables 3 meters long, which are protected by PVC insulation. For enhanced protection against moisture and dust, it meets the IP67 standard, making it suitable for demanding environments as well.

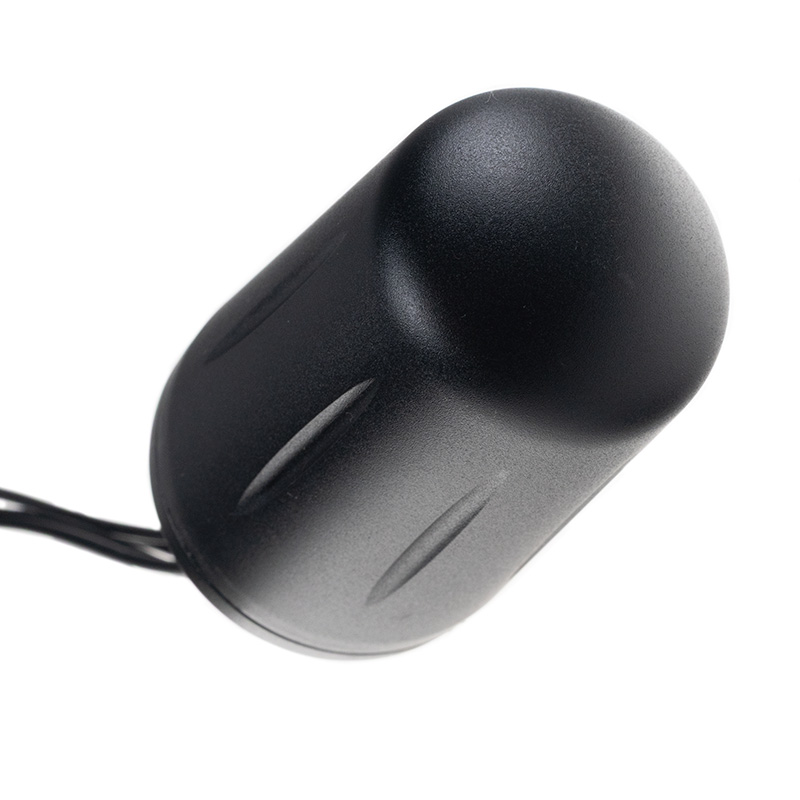

The antenna housing is made from UV-resistant PC/ABS material, ensuring long lifespan and durability under outdoor conditions.
Cable specifications RG174 / U:
The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

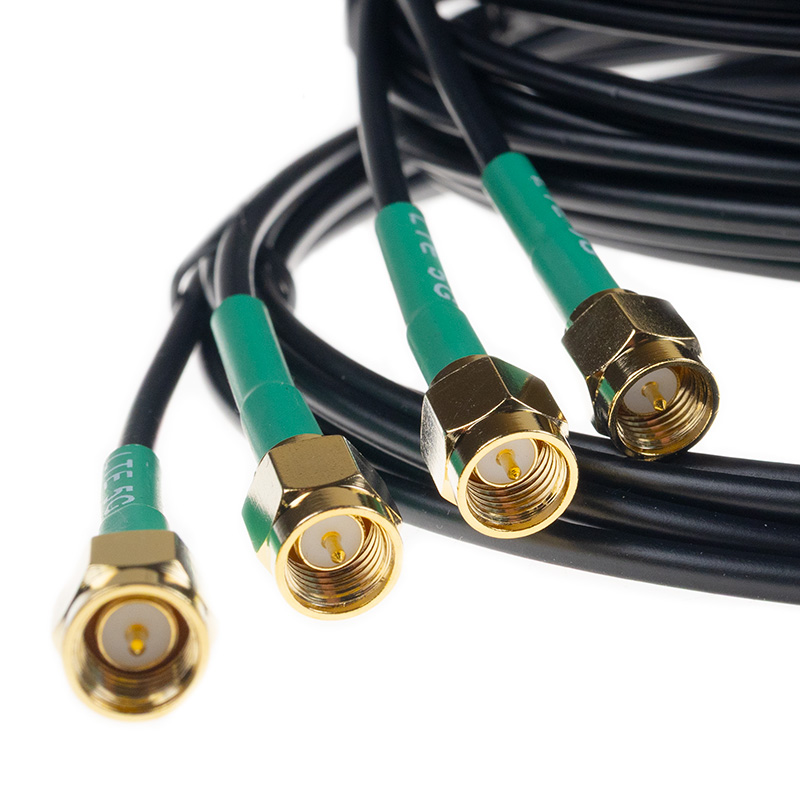

Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties
Technical parameters can be found in the attached datasheet.
